Transceiver

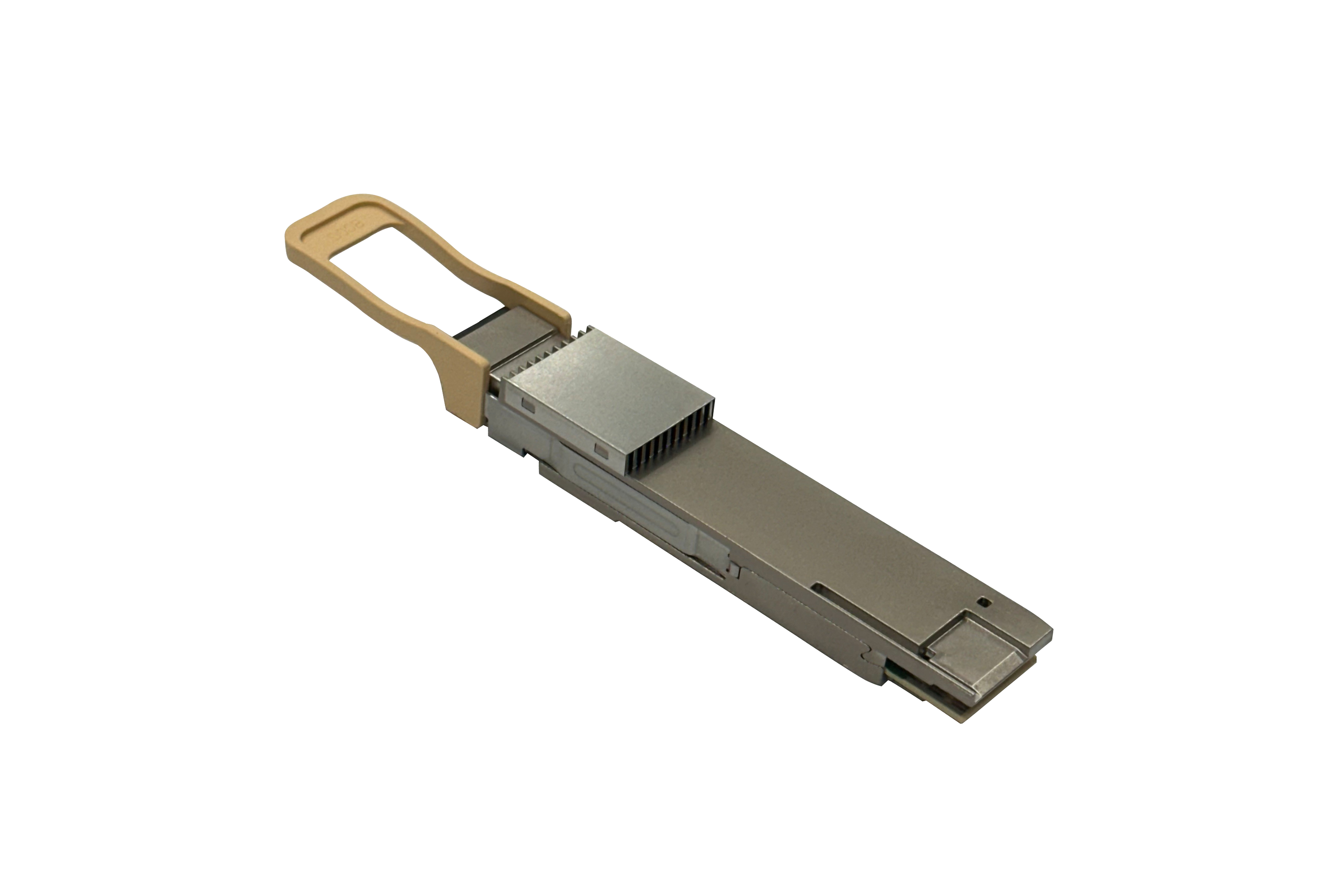

800G QSFP-DD800

Key Features

  • 800G SR8 multimode transceiver
  • Data rate typical 53.125 GBd per lane
  • 100G-PAM4 modulation
  • QSFP-DD800
  • Single 3.3 V power supply
  • Low power consumption: 14 W
  • MPO-16/APC optical connector
  • Hot pluggable
  • Management interface: CMIS 5.1
  • Commercial operating case temperature range:
    0 to 70°C
  • RoHS/REACH compliant

Applications

  • Ethernet, InfiniBand NDR, IEEE 802.3df 800GBASE SR8
  • Datacenter: servers, switches, storages
    , and other adapter cards
  • Proprietary HPC interconnections
Request for a data sheet
